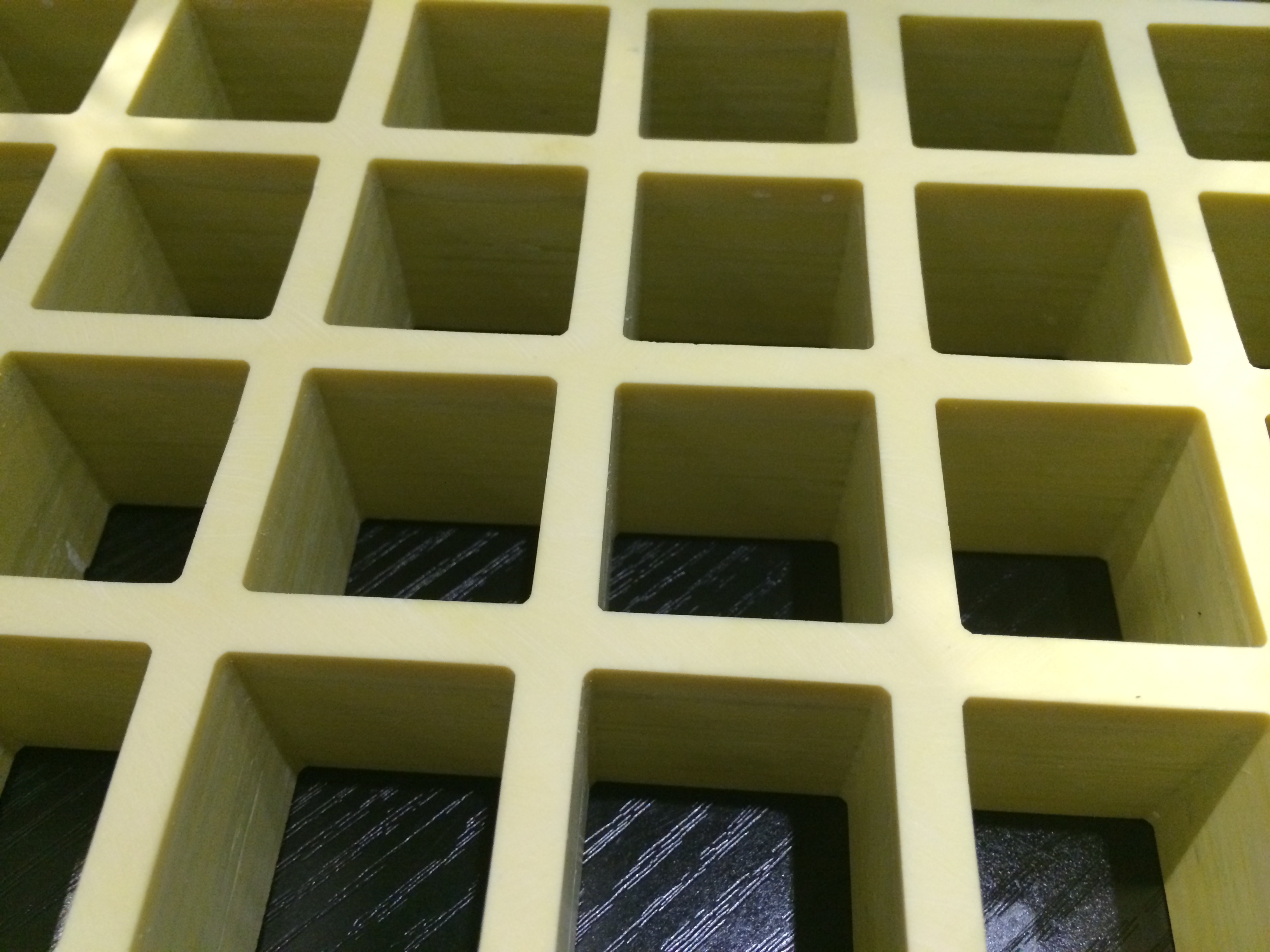

FRP Grating (compression moulding)
FRP Grating is produced by high strength E glass fiberglass roving and thermosetting resin by special producing process on metal moulding.
.jpg)
.jpg)
Product Name: FRP Grating (compression moulding)
ProductNo: 1295-694
ProductModel: CYS
Unit：T
Tag：mouding gratingFRP Grating
Click：2373
FRP Grating (compression moulding)
FRP Grating is produced by high strength E glass fiberglass roving and thermosetting resin by special producing process on metal moulding. The benefit is light weight, high strength, corrosion resistant, fire retard, slip resistant, it is suitable for corrosion environment for load bearing.
It is widely used as operating platform, broad step, terrace, ventilation fence in sewage treatment, water supply and sewerage work, chemical, hydroelectric power, paper mill, project building, textile printing and dyeing factory, boat building etc..
Specification | Dimension (mm) | Hole size (mm) | Hole rate (%) | Net weight (Kg) |
CYS-AS/38.1 x38.1/25.4 | 1220 x 3660 x 25.4 | 38.1*38.1 | 69.9 | 64 |
CYS-AS/25.4 x101.6/25.4 | 1220 x 3660 x 25.4 | 25.4 x 101.6 | 63.9 | 73 |
CYS-AS/38.1 x38.1/38.1 | 1220 x 3660 x 38.1 | 38.1*38.1 | 70.0 | 92 |
CYS-AL/38.1 x38.1/38.1 | 1520 x 3960 x 38.1 | 38.1*38.1 | 70.0 | 114 |
CYS-AS/50.8 x50.8/50.8 | 1220 x 3660 x 50.8 | 50.8 x 50.8 | 77.8 | 101 |
CYS-AS/38.1 x152.4/38.1 | 1220 x 3660 x 38.1 | 38.1*152.4 | 72.6 | 87 |
CYS-AS/38.1 x152.4/38.1 | 579 x 3048 x 38.1 | 38.1 x 152.4 | 74.8 | 34 |
CYS-JS/340x40/25 | 1247 x 3087 x 25 | 40 x 40 | 72.3 | 46 |
CYS-JS/40 x40/40 | 1247 x 3087 x 40 | 40 x 40 | 72.3 | 73 |
CYS-ES/52 x52田/30 | 1000 x 4000 x 30 | 52 x 52 + 19 x 19 | 70.0 | 72 |
CYS-ES/52 x52田/50 | 1000 x 4000 x 50 | 52 x 52 + 19 x 19 | 73.3 | 108 |
CYS-GS/100 x 100 /25.4 | 117.5 x1480 x25.4 | 100 x 100 | 83.8 | 9 |
