High Silica Fiber Braided Sleeving
High Silica Fiber Braided Sleeving, high silica tape
Product Name: High Silica Fiber Braided Sleeving
ProductNo: 121535-126
ProductModel: HSBS40-1.6
Unit：T
Tag：High Silica Sleeving，high silica tapehigh silica wick High Silica Braided Sleeving，High Silica Braided Sleeving
Click：3573

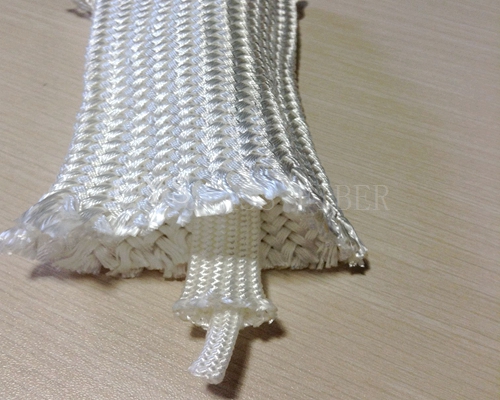

High Silica Fiber Braided Sleeve (wick)
High Silica Fiber Braided Sleeve (wick) is a kind of high temperature, heat and flame resistance silica tape. High Silica Fiber Braided Sleeve is an excellent alternative to asbestos and ceramic based textiles.
The High Silica Fiber Braided Sleeve is primarily used as the thermal protection of circular items, the sleeves can be applied in aerospace (gas turbine and rocket engines), metallurgical, nuclear power, electricity generation, petrochemical industries, etc. for example, tube seals, high temperature gaskets, heaters, reformers, turbine exhaust, boilers, thermocouple wire, etc.
Product Characters
High temperature resistance above 1000°C
Excellent heat resistance.
High insulation property
Good chemical stability
Good acid resistance and erode resistance.
Low shrinkage and thermal conductivity.
Product Specification
Item no. | External Diameter(mm) | Wall Thickness(mm) | Unit Weight(g/m) |
HSBS5-0.7 | 5±1.0 | 0.7±0.2 | 12±5 |
HSBS8-1.6 | 8.0±1.6 | 1.6±0.2 | 18±5 |
HSBS10-1.6 | 10.0±2.0 | 1.6±0.2 | 50±5 |
HSBS15-1.6 | 15.0±3.0 | 1.6±0.2 | 65±10 |
HSBS20-1.6 | 20.0±4.0 | 1.6±0.2 | 85±10 |
HSBS25-1.6 | 25.0±5.0 | 1.6±0.2 | 90±10 |
HSBS30-1.6 | 30.0±6.0 | 1.6±0.2 | 125±13 |
HSBS35-1.6 | 35.0±7.0 | 1.6±0.2 | 140±14 |
HSBS40-1.6 | 40.0±10.0 | 1.6±0.2 | 170±17 |
HSBS50-1.6 | 50.0±10.0 | 1.6±0.2 | 180±20 |
HSBS64-1.6 | 64.0±10.0 | 1.6±0.2 | 255±26 |
HSBS76-1.6 | 76.0±10.0 | 1.6±0.2 | 305±31 |
HSBS80-1.6 | 80.0±10.0 | 1.6±0.2 | 320±32 |
HSBS86-1.6 | 86.0±10.0 | 1.6±0.2 | 345±35 |
HSBS90-1.6 | 90.0±10.0,, | 1.6±0.2 | 360±36 |
