High Silica Tape
High Silica Tape, Silica Woven Tape, high silica fiberglass tape, high silica insulation fiberglass tape, high silica fiber tape, High Temperature Silica Tape， Fiberglass Tape for 1000℃ high temp insulation, 1000℃ Insulation Silica Fiber Tape, Silica
Product Name: High Silica Tape
ProductNo: 14221-619
ProductModel: tape1
Unit：T
Tag：High Silica Tape Silica Woven Tape high silica fiberglass tape high silica insulation fiberglass tape high silica fiber tape High Temperature Silica Tape， Fiberglass Tape for 1000℃ high temp insulation 1000℃ Insulation Silica Fiber Tape Silica
Click：1257

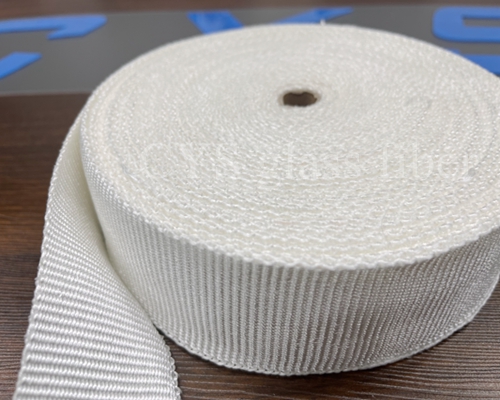

High Silica Tape
High Silica Tape is woven by high silica yarn with 96% SiO2, has salvaged edges to prevent raveling. It’s available for applications requiring minimum shrinkage at high temperature, with excellent size stability against heating. High silica fiberglass tape can used for a long time without changing its properties at the temperature 900℃. Its softening point is closely 1700℃ and it can be used under 1000℃ situation for a long time.
It’s used for high temperature working conditions, such as protection of equipment fire, extreme heat, welding splatter and molten metal in molten metallurgy, electric power, coal and other industries to ensure safety and smooth operation.
Product Applications
--Used for welding/cutting splatter protection.
--Used to protect from molten metal splash.
--Used in extreme heat protection of cables and hoses.
--Used in electric power cables and hoses protection.
--Used in ovens, furnaces and boilers as door seal and thermal insulation pad.
--Used as pipe wrap in such applications as steam tracer lines.
Product Characteristics
Low thermal conductivity.
Good chemical stability.
Good insulating property.
Good electrical insulation.
Good acid resistance and erode resistance.
Low thermal shrinkage.
Non-asbestos or ceramic fibers
Item | Thickness (mm) | Width (mm) | Area weight (g/m2) | SiO2 content | LOI | weave |
BTT100 | 0.1±0.01 | 25~100 | 85±9 | ≥96% | ≤4% | plain |
BTT280 | 0.28±0.03 | 25~100 | 240±24 | ≥96% | ≤4% | plain |
BTT360 | 0.36±0.04 | 25~100 | 275±30 | ≥96% | ≤4% | plain |
BTT550 | 0.55±0.06 | 25~100 | 440±44 | ≥96% | ≤4% | plain |
BTT650 | 0.65±0.07 | 25~100 | 600±60 | ≥96% | ≤4% | satin |
BTT760 | 0.76±0.08 | 25~100 | 680±68 | ≥96% | ≤4% | plain |
BTT1000 | 1.0±0.1 | 25~100 | 915±92 | ≥96% | ≤4% | satin |
BTT1600 | 1.6±0.16 | 25~100 | 1350±135 | ≥96% | ≤4% | plain |
