Finished Glass Fabrics for Printed Boards
Finished glass fabrics for printed boards are manufactured with advanced technologies and modern equipment. For printed boards.
Product Name: Finished Glass Fabrics for Printed Boards
ProductNo: CYS-7628
ProductModel: 7628, 200g
Unit：T
Tag：Finished glass fabrics for printed boards7628 fabrics fiberglass fabric
Click：4182

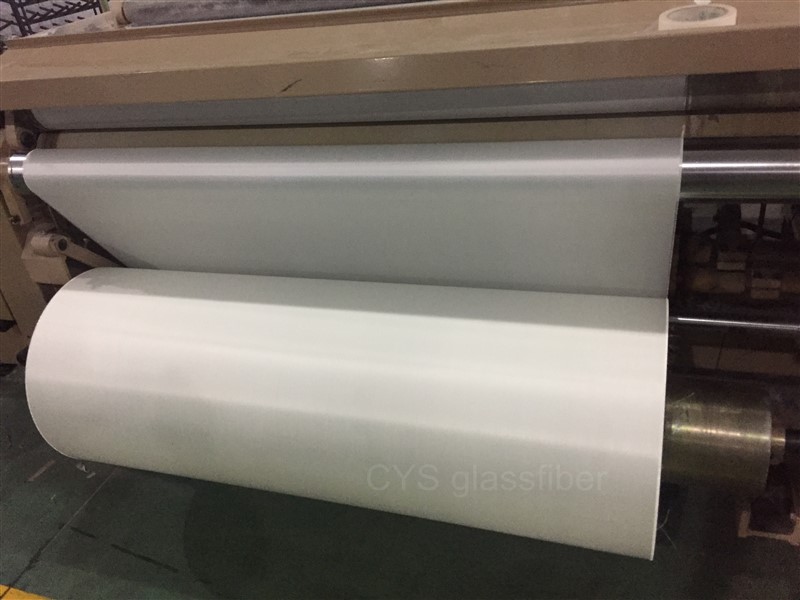

Finished Glass Fabrics for Printed Boards
Finished glass fabrics for printed boards are manufactured with advanced technologies and modern equipment. They are especially designed for printed boards. It has excellent properties of electrical insulation and processing. They are the necessary basic materials for electronic industry such as computers and communication equipments.
Product characteristics:
1. Even fabric thickness.
2. Excellent wet out with resin.
3. Excellent electrical insulating property.
4. Very few appearance defects.
5. Excellent process performance.
Product parameters:
Product Code | Imitate7628 | 7628 | |
Thickness (mm) | 0.2+_0.02 | 0.173 | |
Width (mm) | 1270+10 | 1270+10 | |
Weight (g/m2) | 198-212 | 204.5-215.3 | |
Diameter roll (cm) | longitude | 17.4+_1 | 17.4+_1 |
latitude | 12.2+_1 | 12.2+_1 | |
Strength (N/25*100mm) | longitude | ≥800 | ECG75 1/0 0.7Z |
latitude | ≥900 | ||
Roll length (m) | 400-2400 | 2000 | |
